TCI, LED Driver small Universal, Produktbild, LED Betriebsgerät

LED driver small, universal

TCI SKU: L-220363
Price
Regular price €5590
Regular price Sale price €5590
Spare €-55,90
/
inkl. MwSt. zzgl. Versandkosten
dimming type
power range
  • Low stock - 10 items left
  • Backordered, shipping soon
  • 3% bei Vorkasse und weitere Rabatte im Warenkorb
Tax included. Shipping calculated at checkout.
Gratis Akku-Tischleuchte ab 2.000 € Warenkorbwert
Description

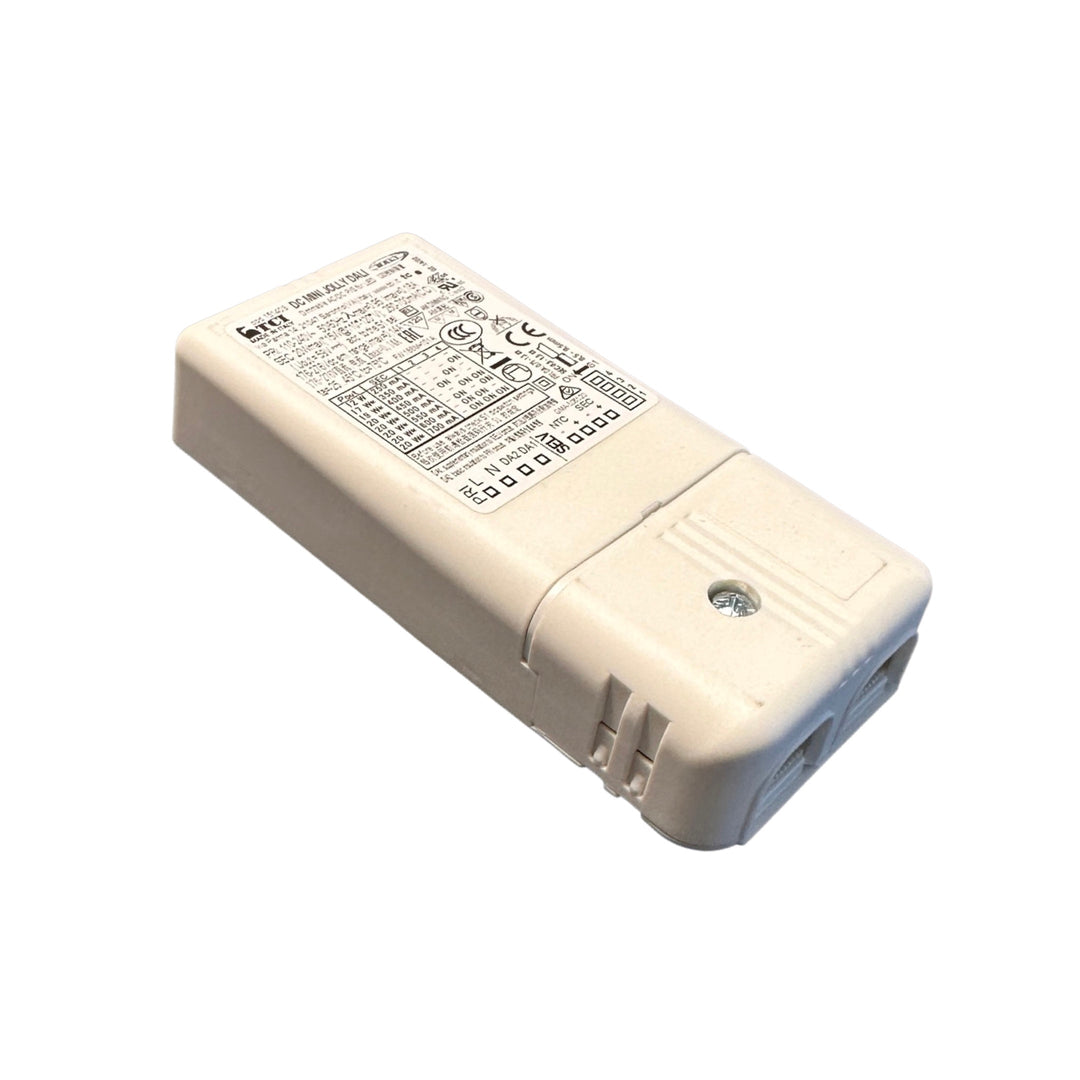

LED Driver small, Universal. Length: 11cm, Width: 5.2cm, Height: 2.2cm, Inputs: 1 x 230V.

Version: Phase-Cut / 250mA-900mA:

Setting 1 12 W 15...48 V 250mA const. max 13
Setting 2 14 W 15...48 V 300mA const max 13
Setting 3 17 W 10...48 V 350mA const max 13
Setting 4 19 W 5...48 V 400mA const max 12
Setting 5 20 W 5...44 V 450mA const max 12
Setting 6 20 W 5...40 V 500mA const max 11
Setting 7 20W 5...36 V 550mA const max 10
Setting 8 20 W 5...33 V 600mA const max 9
Setting 9 20 W 5...31 V 650mA const max 8
Setting 10 20 W 5...29 V 700mA const max 8
Setting 11 20 W 5...27 V 750mA const max 7
Setting 12 20 W 5...25 V 800mA const max 7
Setting 13 20 W 5...23 V 850mA const max 6
Setting 14 20 W 5...22 V 900mA const max 6
Setting 15 11 W 12 V constant 900mA max -
Setting 16 20 W 24 V constant 830mA max -

Version: Push / 250mA-900mA:

Setting 1 13 W 20...53 V 250mA const max 15
Setting 2 15 W 20...52 V 300mA const max 14
Setting 3 18 W 15...50 V 350mA const max 14
Setting 4 20 W 15...50 V 400mA const max 14
Setting 5 20 W 5...45 V 450mA const max 12
Setting 6 20 W 5...40 V 500mA const max 11
Setting 7 20 W 3...37 V 550mA const max 10
Setting 8 20 W 3...34 V 600mA const max 9
Setting 9 20 W 3...31 V 650mA const max 8
Setting 10 20 W 3...29 V 700mA const max 8
Setting 11 20 W 3...27 V 750mA const max 7
Setting 12 20 W 3...25 V 800mA const max 7
Setting 13 20 W 3...24 V 850mA const max 6
Setting 14 20 W 3...23 V 900mA const max 6
Setting 15* 10 W 12 V constant 830mA max -
Setting 16* 20 W 24 V constant 900mA max

-

Version: Push / 100mA-380mA

Setting 1 5.4 W 20...54 V 100mA const. max. 15
Setting 2 6.4 W 20...54 V 120mA const. max. 15
Setting 3 7.5 W 10...53 V 140mA const. max. 15
Setting 4 8.5 W 2...53 V 160mA const. max. 15
Setting 5 9.5 W 2...53 V 180mA const. max. 15
Setting 6 10.6 W 2...53 V 200mA const. max. 15
Setting 7 12 W 2...53 V 220mA const. max. 15
Setting 8 12.5 W 2...53 V 240mA const. max. 15
Setting 9 14 W 2...53 V 260mA const. max. 15
Setting 10 15 W 2...53 V 280mA const. max. 15
Setting 11 16 W 2...52.5 V 300mA const. max. 15
Setting 12 17 W 2...52 V 320mA const. max. 15
Setting 13 18 W 2...52 V 340mA const. max. 15
Setting 14 19 W 2...52 V 360mA const. max. 15
Setting 15 20 W 2...52 V 380mA max max. 15

Version: Dali / 100mA-380mA:

Dip-SW Power Sec. voltage Sec. current # LED
Setting 1 5.3 W 10...53 V 100mA const. max. 15
Setting 2 7.5 W 10...53 V 140mA const. max. 15
Setting 3 9.5 W 10...53 V 180mA const. max. 15
Setting 4 12 W 10...53 V 220mA const. max. 15
Setting 5 14 W 10...52 V 260mA const. max. 15
Setting 6 16 W 10...52 V 300mA const. max. 15
Setting 7 18 W 10...51 V 340mA const. max. 15
Setting 8 20 W 10...51 V 380mA const. max. 15
Setting 9 9 W 24 V const. 380mA max -

Version: Dali / 150mA-900mA:

Dip-SW Power * Sec. voltage Sec. current
Setting 1 8.1 W 2...54 150 mA
Setting 2 10.8 W 2...54 200 mA
Setting 3 13.5 W 2...54 250 mA
Setting 4 16.2 W 2...54 300 mA
Setting 5 18.9 W 2...54 350 mA
Setting 6 21.6 W 2...54 400 mA
Setting 7 24.3 W 2...54 450 mA
Setting 8 25 W 2...50 500 mA
Setting 9 25 W 2...42 600 mA
Setting 10 25 W 2...38.5 650 mA
Setting 11 25 W 2...36 700 mA
Setting 12 25 W 2...33.5 750 mA
Setting 13 25 W 2...31.5 800 mA
Setting 14 25 W 2...29.5 850 mA
Setting 15 25 W 2...28 900 mA
Setting 16* 22 W 24 const. 24VDC








Lieferbedingungen

Wir versuchen immer die im Shop angegebenen Lieferzeiten einzuhalten. Sobald uns ein genauer Liefertermin vorliegt, teilen wir diesen umgehend mit.
Herstellerangaben

TCI TELECOMUNICAZIONI ITALIA S.R.L.
Via Parma, 14
Saronno 21047 (VA)
Italy

Tel: +39 02964161
Fax: +39 029608247
P IVA: 01356020121
